TK-240 XT
Mobile Fuel Polishing System
- Removes heavy and fine contaminants such as sludge, water, and particulates from fuel storage tanks (4 GPM flow rate)
- Portable compact design for easy transportation between fuel storage tanks or into tight areas for fuel port access
- Prevents unnecessary mess, catching potential drips or spills produced during routine filter changes with the system's drip pan
Product Details
Product Specifications
Technical Documents
Troubleshooting

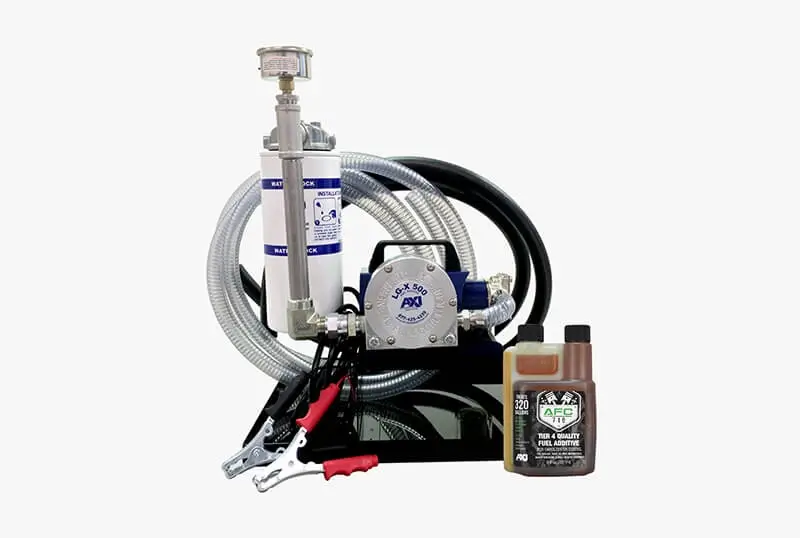

The TK-240 is a compact, light, and fully portable fuel polishing system that removes water, sludge, and other contaminants that accumulate in fuel storage tanks. The system’s compact design allows for easy transportation from tank to tank or into tight areas where fuel may need to be polished. With a 4 GPM flow rate, the TK-240 can polish up to 240 gallons (908.5 liters) of fuel in just 1-hour of runtime.
System Features:
Manual Filtration
Remediate fuel to desired cleanliness levels through the removal of fuel contaminants
Portable System Design
Easily transport system from tank to tank with the system's carrying handle
Drip Pan
Capture potential drips or spills produced during routine filter changes
Nominal Flow Rate
4 GPM/240 GPH (15 LPM/908.5 LPH)
Primary Strainer
40 Mesh T-Strainer
Secondary Filter
10μ Particulate Fine Filter or 3μ Water Block
Fuel Conditioner
LG-X 500 Inline Magnetic Conditioner
Pump
Helical Spur Gear Pump
Power
12V/10A
Plumbing
Steel
Ports
1/2" Hose Barb In, 1/2" Hose Barb Out
Dimensions
≈ 13” x 12” x 12” (33 x 30 x 30 cm) (H x W x D)
Weight
≈ 26 lbs (11.8 kg)
Please consult the “Troubleshooting” section of the system manual to diagnose any issues you may be experiencing. The manual can be found under the “Technical Documents” tab. If you need additional assistance feel free to reach out via the contact form below or by phone (+1-877-425-4239) during AXI International’s operating hours (Monday – Friday, 8am – 5pm EST).
The TK-240 is a compact, light, and fully portable fuel polishing system that removes water, sludge, and other contaminants that accumulate in fuel storage tanks. The system’s compact design allows for easy transportation from tank to tank or into tight areas where fuel may need to be polished. With a 4 GPM flow rate, the TK-240 can polish up to 240 gallons (908.5 liters) of fuel in just 1-hour of runtime.
System Features:
Manual Filtration
Remediate fuel to desired cleanliness levels through the removal of fuel contaminants
Portable System Design
Easily transport system from tank to tank with the system's carrying handle
Drip Pan
Capture potential drips or spills produced during routine filter changes
Nominal Flow Rate
4 GPM/240 GPH (15 LPM/908.5 LPH)
Primary Strainer
40 Mesh T-Strainer
Secondary Filter
10μ Particulate Fine Filter or 3μ Water Block
Fuel Conditioner
LG-X 500 Inline Magnetic Conditioner
Pump
Helical Spur Gear Pump
Power
12V/10A
Plumbing
Steel
Ports
1/2" Hose Barb In, 1/2" Hose Barb Out
Dimensions
≈ 13” x 12” x 12” (33 x 30 x 30 cm) (H x W x D)
Weight
≈ 26 lbs (11.8 kg)
Please consult the “Troubleshooting” section of the system manual to diagnose any issues you may be experiencing. The manual can be found under the “Technical Documents” tab. If you need additional assistance feel free to reach out via the contact form below or by phone (+1-877-425-4239) during AXI International’s operating hours (Monday – Friday, 8am – 5pm EST).
