PF-10 HD Primary Filter Vessel

PF-10 HD Primary Filter Vessel

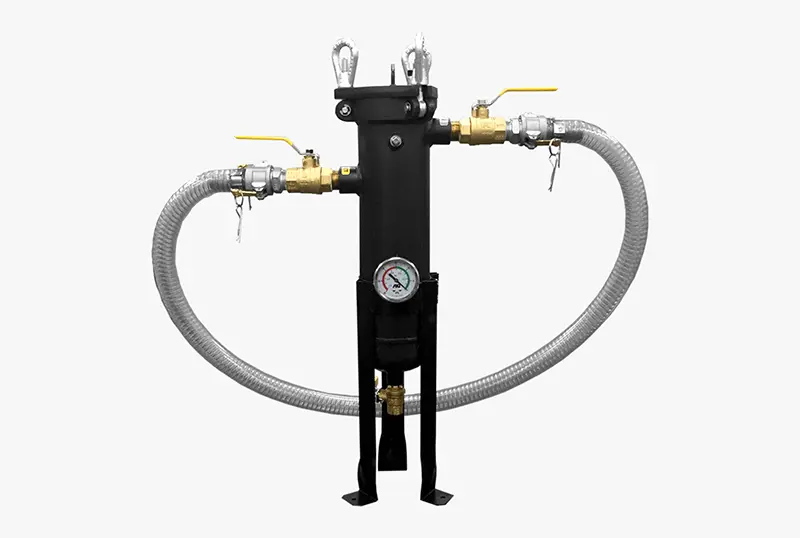

AXI’s PF-10 HD is a primary filter vessel designed to remove large contaminants such as sludge and particulates often found in unkept fuel. This is achieved through the housing of replaceable filter bags which can range from 800 down to 1 micron in size. The PF-10 HD can be ordered as a standalone filter vessel or as an accessory pre-filter cart that can be paired with AXI’s MTC-1000 mobile fuel polishing system. As an accessory pre-filter cart, the PF-10 HD will spare more expensive filter elements from premature clogging by first collecting the bulk contaminants.

  • Product Specifications
Maximum Flow Rate
≈ 20 GPM/76 LPM
Filter Element
1 - 800μ Filter Bag
Ports
1" Cam & Groove In, 1" Cam & Groove Out
Shutoff Valve
1"
Drain
1/2" NPT
Gauges
Stainless Steel Liquid-Filled Vacuum Gauge
Dimensions
≈ 26" x 19.5" x 5.5" (66 x 50 x 14 cm) (H x W x D)
Weight (Empty & w/o Cart)
≈ 16 lbs (7.3 kg)
