System Solutions

Mobile Fuel
Polishing Systems (MTC)

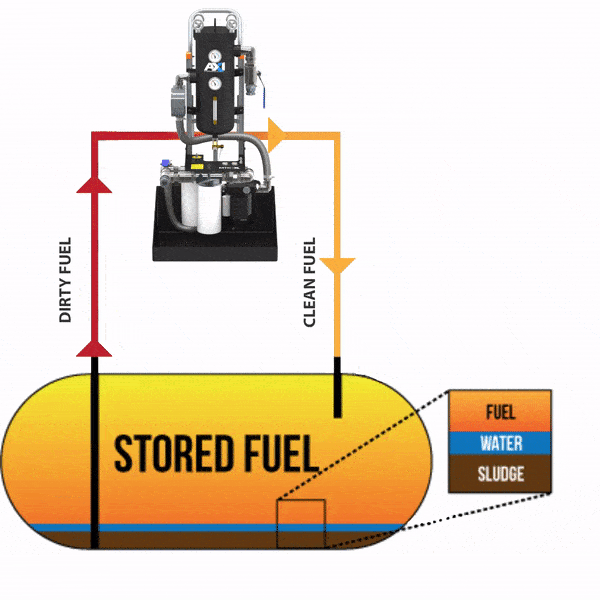

AXI International’s MTC products are mobile fuel polishing systems that remove water, sludge, sediment, and other contaminants that naturally accumulate in fuel storage tanks. Once onsite, the MTC systems can begin polishing diesel, bio-diesel, jet fuels, light oils, and hydraulic fluids with a multi-stage filtration process.  This filtration process will recondition, stabilize, and decontaminate your fuels, restoring them to pristine condition to ensure optimal engine performance and reliability.

Applies for high capacity (HC) series systems*

Portable System Design

Easily transport your system(s) from site to site for periodic fuel polishing and remediation of fuel storage tanks.

Multi-Stage Filtration

All MTC systems feature a multi-stage filtration process aimed to remove water, sludge, and other fuel contaminants.

Smart System Alarms*

Each high capacity MTC system features smart system alarms giving users insight on system statuses.

High Capacity Flow Rates*

All MTC HC Series systems can polish fuels at various high flow rate ranges that can be adjusted to meet the user’s needs.

Available Systems:

mobile fuel polishing system tk 240 xt

TK-240 XT

  • Flow Rate: 4 GPM/240 GPH
  • Power: 12VDC/10A
  • Dimensions: 13″ x 12″ x 12″ (33 x 30 x 30 cm)
mobile fuel polishing cart mtc 1000

MTC-1000

  • Flow Rate: 15 GPM/900 GPH
  • Power: 120V/60Hz, 230V/50Hz/15A
  • Dimensions: 48″ x 22.5″ x 25″ (122 x 57 x 63 cm)
mobile fuel polishing cart mtc 3000

MTC-3000

  • Flow Rate: 26 GPM/1560 GPH
  • Power: 120V/60Hz, 230V/50Hz/15A
  • Dimensions: 48″ x 22.5″ x 25″ (122 x 57 x 63 cm)
mobile fuel polishing cart mtc x

MTC-X

  • Flow Rate: 26 GPM/1560 GPH
  • Power: 120V/60Hz, 230V/50Hz/15A
  • Dimensions: 48″ x 22.5″ x 25″ (122 x 57 x 63 cm)
mobile fuel polishing system high capacity hc 50

MTC HC-50

  • Flow Rate: 25 - 75 GPM/4,500 GPH
  • Power: Air Powered (25 - 50 SCFM)
  • Dimensions: 59″ x 36″ x 45″ (150 x 91 x 114 cm)
mobile fuel polishing system high capacity hc 90

MTC HC-90

  • Flow Rate: 10 - 90 GPM/5,400 GPH
  • Power: 480V/230V, 50/60Hz, 20A
  • Dimensions: 59″ x 36″ x 45″ (150 x 91 x 114 cm)
mobile fuel polishing system high capacity hc 150

MTC HC-150

  • Flow Rate: 10 - 150 GPM/9,000 GPH
  • Power: 480V/60Hz, 50Hz/20A
  • Dimensions: Two Skids @ 59″ x 36″ x 45″ (150 x 91 x 114 cm)
mobile fuel polishing system high capacity hc 300

MTC HC-300

  • Flow Rate:10 - 300 GPM/18,000 GPH
  • Power: 480V/60Hz, 50Hz/30A
  • Dimensions: 96″ x 54″ x 82″ (244 x 137 x 208 cm)
AXI International's Portal Fuel Polishing Solutions

Portable System Design

  • All MTC systems are constructed on a cart or skid equipped with wheels for ease of movement and portability.
  • All High Capacity (HC) Series systems are available to be mounted on a mobile fuel polishing trailer outfitted with a concession window for easy system access and fuel polishing.

Multi-Stage Filtration

  • Each MTC fuel polishing system features multiple stages of fuel filtration through a combination of mechanical water separation and/or pre-filtration, fuel conditioning, and fine filtration.
  • To save users money, most MTC fuel polishers feature ball valves that allow the fuel to bypass the fine filtration stage(s) during the initial polishing runs. This allows larger contaminants to be removed by the cheaper primary filter element instead of prematurely clogging the more expensive fine filter(s).
MTC System Filter Bypass Graphic
MTC System Smart Alarms Graphic

Smart System Alarms*

  • All MTC HC Series systems feature smart system alarms that monitor vacuum and pressure readings throughout the system, giving users indication as to when filter elements need to be replaced during the fuel polishing process
  • Each high capacity system also includes a smart filtration controller that includes a LCD display and status indicator lights to indicate when the system is powered, the pump is running, or an alarm has been triggered.

High Capacity Flow Rates*

  • AXI International provides high capacity mobile fuel polishing systems that can achieve flow rates of up to 300 gallon per minute (GPM) or 1,136 liters per minute (LPM)
  • Each MTC HC series polisher features a Variable Frequency Device (VFD) that controls the motor to achieve a range of high capacity flow rates as needed by the user.
Variable Frequency Device (VFD) on a MTC HC-300 system
