Magnetic Fuel Conditioner (LG-X)

Magnetic Fuel Conditioner
(LG-X)

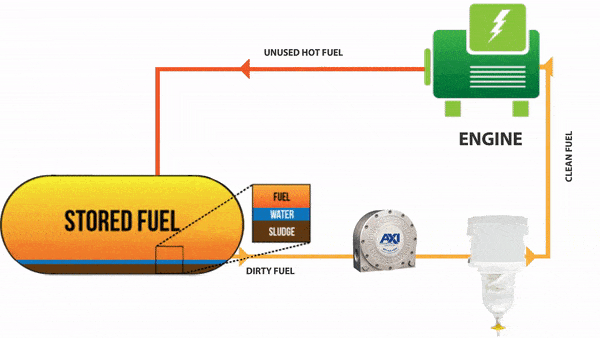

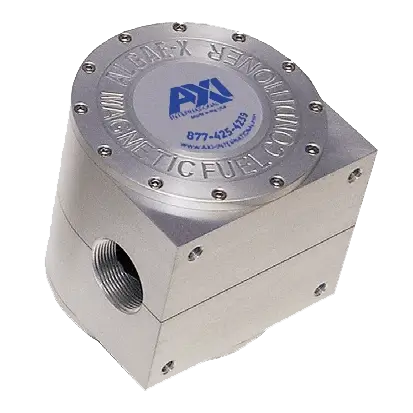

Fuel is naturally unstable. Its quality and chemistry are continuously degrading at the molecular level, forming clusters and organic compounds through the natural process of agglomeration. This process results in the formation of sludge that can contribute to premature filter clogging. AXI’s patented Magnetic Fuel Conditioners help stabilize and condition fuels by reducing the size and mass of fuel clusters. The LG-X fuel conditioners also work to collect ferrous metals that can often find their way into the fuel during new construction or due to tank corrosion. When a conditioner needs to serviced, the LG-X’s faceplate is designed to be easily removed for cleaning of the magnet and removal of collected metals.

  • Product Specifications
LG-X 200:
LG-X 500:
LG-X 1500:
LG-X 3000:
LG-X 4/5000:
Port Size (NPT/BSP)
1/4"
1/2"
3/4"
1"
1-1/2" / 2"
Max Flow Rate (On Engine)
1-25 GPH (3.8-95 LPH)
20-110 GPH (76-416 LPH)
50-350 GPH (189-1,325 LPH)
200-800 GPH (757-3,028 LPH)
1,500/2,500 GPH (5,678/9,465 LPH)
Weight
1 lb. (0.45 kg)
2 lbs. (0.9 kg)
4 lbs. (1.8 kg)
7.5 lbs. (3.4 kg)
27/35 lbs. (12/16 kg)
HP Range
Up to 200 HP
Up to 500 HP
Up to 1,500 HP
Up to 3,000 HP
3,000 HP and up
Construction
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
