Fill Port Systems

AXI fill port systems are compact solutions for convenient filling of fluid or fuel storage tanks. The fill port systems feature an enclosed port for hose connection and a containment basin to collect any fuel that may spill during the filling process. The fill port systems can be mounted to a wall or on a stand, and are capable of providing the user alerts and statuses from the connected storage tank(s).

Applies to select fill port systems*

NEMA Rated System Enclosures

Each fill port system is constructed inside a standard powder coated NEMA 4 rated cabinet featuring a spill containment basin with integrated leak detection.

Smart System Alarms & BMS Integration*

Most fill port systems feature smart feedback features to indicate tank fill levels and communicate system alerts such as critical high fuel levels to prevent tank overfilling.

Multi-Tank Filling Capabilities*

Most fill port systems have a multi-tank upgrade option, allowing users to fill multiple storage tanks from a single filling location using actuated ball valves.

Integrated Pump for Assisted Tank Filling*

Certain fill port systems feature both pumped and gravity fed tank filling options by providing an integrated system pump that can pull fuel from an attached gravity tanker truck.

Available Systems:

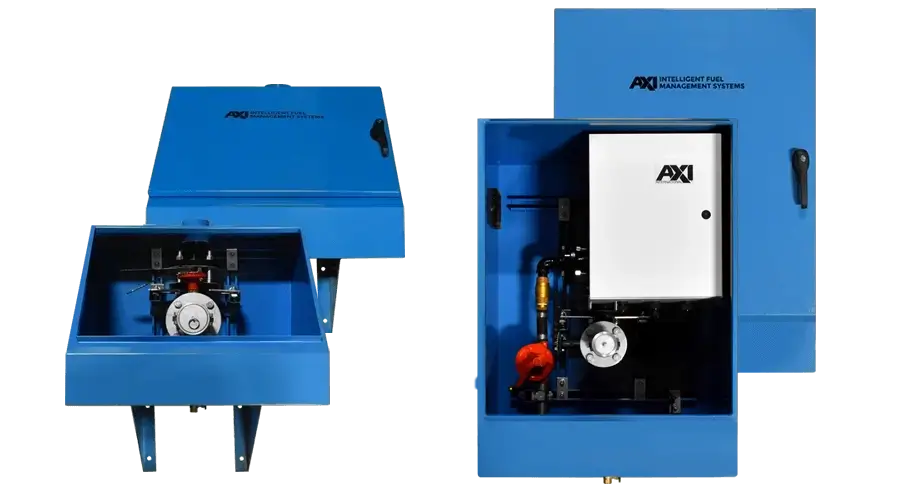

Remote Fill Port for fuel site filling and tank content access with spill prevention.

Remote Fill Port (RFP)

  • Delivery Type: Pumped
  • Power: N/A
  • Dimensions: 24” x 30” x 26” (61 x 76 x 66 cm)
Intelligent Fill Port System (IFP 1300)

Intelligent Fill Port (IFP)

  • Delivery Type: Pumped
  • Power: 120V/60Hz, 230V/50Hz/15A
  • Dimensions: 42” x 30” x 24” (107 x 76 x 61cm)
fill port systems fuel pfp 3300

Pumped Fill Port (PFP)

  • Delivery Type: Gravity Fed or Pumped
  • Power: 230V, 480V/60Hz/3Ph
  • Dimensions: 50” x 56” x 36” (127 x 142 x 91 cm)
Fill Port NEMA rated cabinets graphic

NEMA Rated System Enclosures

  • Ensure your system's components are protected from the elements such as windblown dust and rain with NEMA 4 rated enclosures. For extreme environments, upgrade to NEMA 4X rated Stainless Steel enclosures for additional protection against corrosion.
  • Prevent any unnecessary ground contamination during routine tank filling with a built in spill containment basin designed to collect any excess fluids.
  • Be alerted in the case of a system leak or spill with a built in leak detection float sensor placed in the system's spill containment basin (only applies to select systems).

Smart System Alarms & BMS Integration*

  • Get realtime feedback on system statuses via the system's alarms and feedback modules. Know when a tank is full and be protected from tank overfilling with an automated valve shut off in case of a critical high fuel level.
  • Integrate your fill port system into your building management system (BMS) for remote monitoring of system statuses and tank fill levels.
Fill Port smart alarm and BMS integration graphic
Fill Port Multi-Tank graphic

Multi-Tank Filling Capabilities*

  • Connect our fill port systems to up to 4 separate tanks for ease of filling from one central location.
  • Get realtime feedback on each tank's fill level with our included System Automation Controllers.
  • Prevent tank overfilling with automated valves dedicated for each tank. Users are notified of high fill levels as soon as they occur. Should filling continue and a critical high fill level be reached, the respective tank valve will close to prevent any further filling.

Integrated Pump for Assisted Tank Filling*

  • With our Pumped Fill Port System (PFP 3300) users can connect to one of two inlet ports for both assisted and non-assisted tank filling.
  • When needed, the PFP 3300 features a 300 GPM fill pump in order to effectively pull fuel from connected gravity tanker trucks.
Pump Fill Port (PFP 3300) integrated fill pump graphic
